078-000-062 – EMC CX3 SPS Replacement Battery 118031985, 100-809-013, 071-000-459, 078-000-083

Description

EMC CX3-10, CX3-20, CX3-40, AX4-5, AX150 SPS, CX200, CX300, CX400, CX500, CX600, CX700 SPS Replacement Battery 118031985 / 071-000-459 / 078-000-062 / 078-000-083 / APIFS18 / 100-809-013

SPS Pros is dedicated to providing top quality standby power supplies to keep your EMC storage array running smoothly. This particular model with part numbers 118031985 / 071-000-459 / 078-000-062 / 078-000-083 / APIFS18 / 100-809-013, is used by the original EMC CX series as well as the EMC CX3 series (excluding the CX3-80). This EMC SPS is a 1000W unit compatible with the EMC CX200, CX300, CX400, CX500, CX600, CX700, CX3-10, CX3-20, CX3-40, AX4-5, AX4-5I and AX150.

All EMC SPS units are fully refurbished with brand new battery cores and come with a 60 day warranty.

EMC CLARiiON Standby Power Supply (SPS) / Replacement Battery 118031985 / 071-000-459 / 078-000-062 / 078-000-083 / 100-809-013

As shown in Figure 1, the SPE uses one 1-kilowatt SPS to maintain power to the storage system during a power loss to allow for a full dump of the write cache to a reserved area on persistent disk. An additional SPS can be added for further redundancy

When only one SPS is used, the power output connectors for the SPS supply power to SP A and the first DAE on the first back-end loop. The power for SP B and the remaining power to the first DAE on the first back-end loop are supplied by the PDU within the CLARiiON 40U rack. When two SPSs are used, the power output connectors from the additional SPS power both SP B and the first DAE.

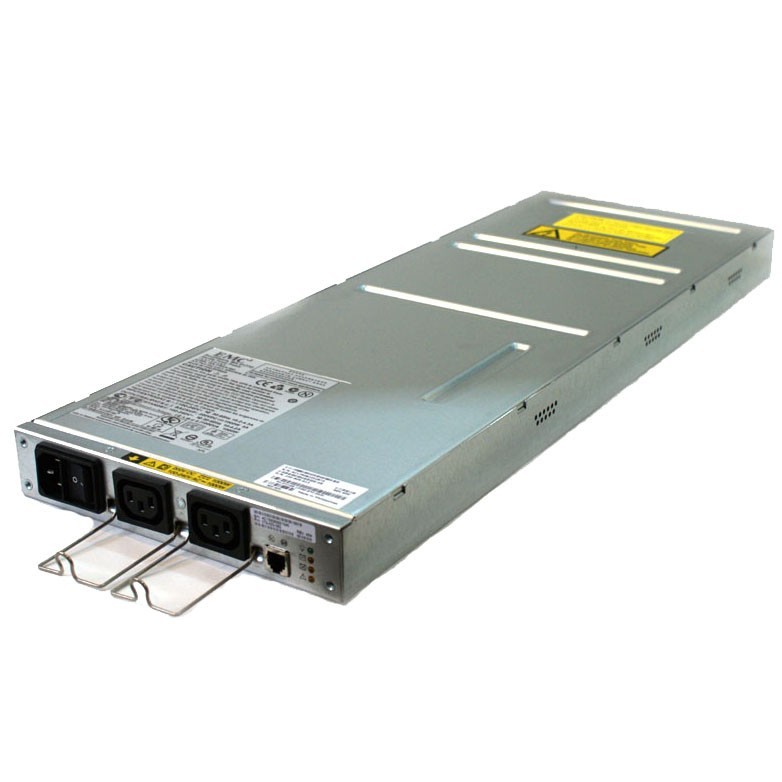

Figure 1. View of EMC CLARiiON Standby Power Supply (SPS) 118031985 / 071-000-459 / 078-000-062 / 078-000-083 / 100-809-013

It is important to cable each SPS so it connects completely to either the A side or the B side. For example, if you are looking at the SPS from the back, they should be configured as follows:

• SPS on the right: Power-out and sense cables should connect to power supply A and SP A.
• SPS on the left: Power-out and sense cables should connect to power supply B and SP B (optional).

If an SPS is cabled with the SPS sense cable going to SP A and the power-out cable going to power supply B (or vice versa), error conditions are displayed when the SPS is tested while it is charging.
